High Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible Duct

Product Categories
Anping Yaqi Wire Mesh Co.,Ltd
Contact Now

High Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible Duct

Brand Name : YQ

Model Number : YQ-J90

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 1 ton

Price : USD450/TON-USD960/TON

Payment Terms : L/C, T/T

Supply Ability : 600TONS/MONTH

Delivery Time : 7-15 DAYS

Packaging Details : inner plastic film, outside woven bags or gunny bags

Material : high carbon steel wire 65# or 70# steel. 50# steel

Wire Thickness : 0.8MM-5.0MM

Surface finish : Black, oiled , or Ungalvanized. Hot dip galvanized iron wire

Application : for make spring , for electric fence, air flexible duct, For constrcution , etc

packing : 25kgs/coil, 50kgsc/coil, 100kgs/coil, 200kgs/coil

Exporting area : kenya, africa , south america, malaysia, wuzbikstan

Zinc coating : 10g/m2. 20g/m2, 30g/m2, 40g/m2, 50g/m2, 60g/m2, 80g/m2,100g/m2, 200g/m2 ,150g/m2

Tensile strength : 1500MPA-1700mpa

Contact Now

black oiled / Galvanized high carbon steel Wire 65# or 70# for spring or for electric fence or for flexible duct with high tensile

Product Name 0.20mm to 12.50mm High Carbon Spring Steel Wire
Standard

DIN 17223-1, EN10270-1, JIS G 3206, JIS G 3521, JIS G 3522,

IS 4454, ASTM A 853-04, ASTM A 227, GOST 9389, GOST 14959
Usage

Mechanical Equipment,Engineering Vehicle,Motor Vehicle,

Motorcycle,Accumulator Car,Bicycle,Fitness Equipment,

Elevator,Steel Wire Screen,Mattress And Sofa,Umbrella Frame,Electronic Products,ect.
Spring Usage

Compression spring,torsion spring,extension spring,

agricultural machines,die springs,strip&wire forming springs

Materials: medium carbon steel or high carbon steel.

According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire.
Tensile strength: 1500--1700MPa.
Elongation: =15%.
Packing: Big coils of 25kg-100kg.

Applications: Galvanized steel wire is mainly used as spring wires, rope wires, scrubbing wires, wire for control cable, wire for braiding hoses, wire for conveyor belts, wires for welding, Tig and Mig wires, nail wires, wires for constructions, etc.

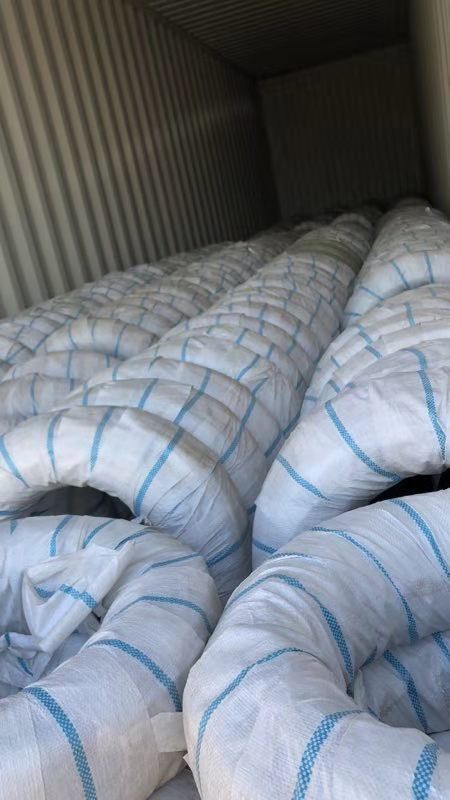

Packing: in coils and from 0.7kgs/coil to 800kgs/coil then each coil to be wrapped inside with PVC strips and outside with Hessian cloth or inside with PVC strips and outside with weaving bag.

Flexible duct wire
Application: Air flexible duct
Material: high carbon steel
Size: 0.90-1.60mm
Tensile strength: 1500-1900N/mm2
Helix: below 30mm
Cast: according to the requirment of the customer
Packing: 20-1000kg, Z2 coils, orbit coils, metal spool & normal coil
Specification: All can be produced according to customers’ actual requirement

High Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible Duct

Material 60#, 65Mn, 70#, 82B
Wire Gauge 3mm, 4mm, 5mm
Tensile Strength 1630 ~ 1830 MPA
Surface Black, Ungalvanized
Package Coil, wrapped by woven bag, or by customer's option
Coil Weight Approx. 45 Kgs
MOQ No less than 1 tons
Lead Time within 7 working days after deposit
Payment Terms 30% Deposit, 70% balanced before shipment / LC at sight
Trade Terms FOB, CFR, CIF, Ex-work
Loading Port Any Port, China. (Shanghai Port would be better for us.)

Diameter

 Tensile Strength (N/mm2)
SW-A SW-B SW-C
0.16 1912-2206 2206-2550 2550-2893
0.18 1912-2206 2206-2501 2501-2844
0.20 1912-2206 2206-2501 2501-2795
0.23 1863-2158 2158-2452 2452-2749
0.26 1814-2108 2108-2403 2403-2697
0.29 1765-2059 2059-2354 2354-2648
0.32 1716-2010 2010-2305 2305-2599
0.35 1716-2010 2010-2305 2305-2599
0.40 1667-1961 1961-2256 2256-2550
0.45 1618-1912 1912-2206 2206-2501
0.50 1518-1912 1912-2206 2206-2501
0.55 1569-1863 1863-2158 2158-2452
0.60 1569-1814 1814-2108 2108-2403
0.65 1569-1814 1814-2108 2108-2403
0.70 1520-1765 1765-2059 2059-2354
0.80 1520-1765 1765-2010 2010-2305
0.90 1520-1765 1765-2010 2010-2256
1.0 1471-1716 1716-1961 1961-2206
1.2 1422-1667 1667-1912 1912-2158
1.4 1373-1618 1618-1863 1863-2108
1.6 1324-1569 1569-1814 1814-2059
1.8 1275-1520 1520-1765 1765-2010
2 1275-1471 1471-1716 1716-1961
2.3 1226-1422 1422-1667 1667-1912
2.6 1226-1422 1422-1667 1667-1912
2.9 1177-1373 1373-1618 1618-1863
3.2 1177-1373 1373-1569 1569-1814
3.5 1177-1373 1373-1569 1569-1765
4 1177-1373 1373-1569 1569-1765
4.5 1128-1324 1324-1520 1520-1716
5 1128-1324 1324-1520 1520-1716
5.5 1079-1275 1275-1471 1471-1667
6 1030-1226 1226-1422 1422-1618
6.5 1030-1226 1226-1422 1422-1618
7 981-1177 1177-1373 1373-1569

High Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible Duct

High Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible DuctHigh Carbon Spring Steel Wire Black Oiled or Galvanized 1.0 mm Flexible Duct
