SS 304 Barbecue Mesh Round Shape 1 . 2 MM Wire 2 Mesh / Crimped Mesh
Specification:
| Material | carbon iron wire, stainless steel wire. |
| Surface Coating | stainelss steel, galvanized coating, copper coating. |
| Hole Shape | round or as required |
| Weaving Types | Flat top crimped Lock crimped Double crimped Intermediate crimped |
| Producting Process | After first rolling,two-way wave bending, locked bending,flat-topped cured, two-way bending,on-way wave bending,rectangular mesh weaving |
| Packing | in rolls wrapped by waterproof paper in panels:in pallets
in pieces:in carton |
| Characteristics | High temperature resistant. Corrosion resistance. Environment friendly . Easy to use and clean. heat-resistance. harmless. |
| Application | used as barbecue mesh grill. drying and firing of various meat, fish, pasta and vegetables. It can be used with stove, or drying containers. used in mine, construction, petroleum,chemical, ocean industry, kitchen and the refrigerator, roasting flour food and meat. |
| Crimped Wire Mesh (Plain Weave) |
| mesh/inch | wire diameter
(mm) | aperture
(mm) | | mesh/inch | wire diameter
(mm) | aperture
(mm) | material |
| 2mesh | 1.8 | 10.9 | 60mesh | 0.15 | 0.273 | 304,
304L,
316,
316L etc. |
| 3mesh | 1.6 | 6.866 | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.2 | 5.15 | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.8 | 3.433 | 100mesh | 0.1 | 0.154 |
| 8mesh | 0.6 | 2.575 | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.99 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.5 | 1.616 | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.4 | 1.188 | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.06 | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.3 | 0.97 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385
|
,
Weaving Types of crimped mesh:
1. Flat top crimped
Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in the vibrating screen.
2. Lock crimped
Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.
3. Double crimped
Double crimped is also called plain weave. Different from the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimp in warp and weft wire. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.
4. Intermediate crimped
Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped.
The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. The double intermediate crimped means both the weft wire and warp wire is pre-crimped and then woven together.
Different Shapes of BBQ mesh:
1.round with border( plain type and protruding type)
2.square with border
3.welding square (before electro galvanized)
4.cruve barbecue grill wire mesh
5.welding round, and square stainless steel

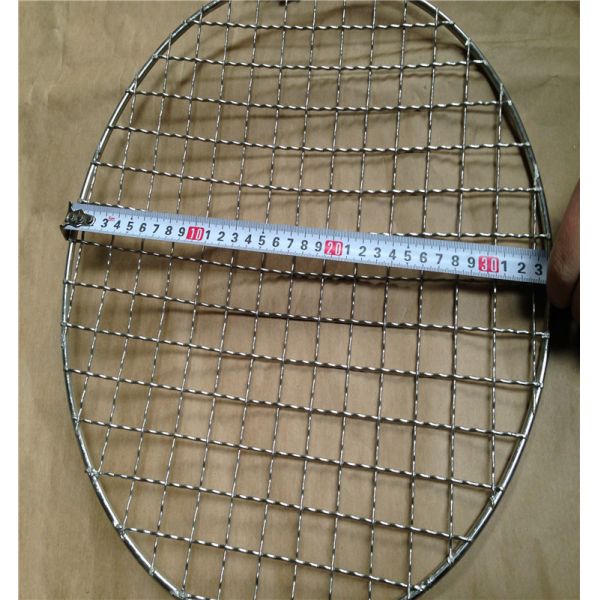

Picture:
