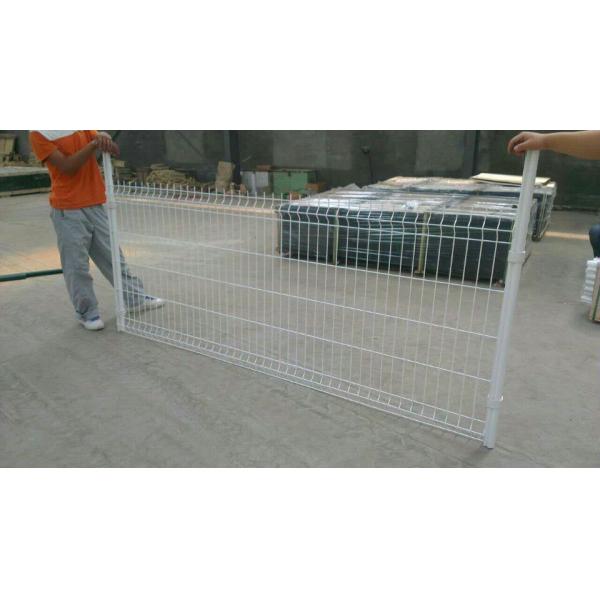

4mm - 5mm PVC coated galvanized welded wire mesh fence (panel) 2.5m width 2m high
product desription
PVC Coated welded wire mesh fence, also named pvc Coated Welded Wire Fence, Security Fence, V-MEX, FS CERCA, PRO 55, PARAMESH DECO, VGUARD, V-pressed welded mesh, Profile Welded Mesh, Plastice coated welded fence, Galvanized and PVC Coated Welded Mesh Fence /Security Welded Wire Fence/ Welded curved Panel fence etc...
We own the largest fence factory in North China; enable us to offer the best.
Welded Wire Mesh Fence Property: corrosion resistance, aging resistance, UV resistance and weather resistance.
1. Material: low carbon iron wire, galvanized iron wire, stainless steel wire and pvc coated wire
2. Wire diameter; 4mm, 4.5mm, 5mm, 5.5mm 6mm
3. mesh opening size:50mm*50mm, 50mm*100mm, 50mm*200mm, 75mm*150mm, 76.2mm*12.7mm
4. fence height;0.5-2.1m
5. fence Length:3m, 2.5m,2m, or as per your request
6. fence panel size: 2.5m*2.1m, 3m*1.8m,etc.
7. processing
Electro galvanized before/after welded
Hot dip galvanized before/after welded
hot dip galvanized and then pvc coated
PVC coated welded mesh panels
or paiting surface/powder coated
8. normal surface finish treatment:
hot dip galvanized, pvc coated, powder coating,
9. post size
square post thickness; 1mm-3mm
post diameter; 40mm,50mm,60mm,75mm,80mm
2mm*50mm*50mm, 2mm*60mm*60mm
10. Color:
The wire fence has rich colors: Green RAL6005, Black RAL9005, Blue, Grey, Brown, Yellow and other colors as your request
11. exporting area: Australia, USA. Canada. Africa,. South east Asia etc.
product application :

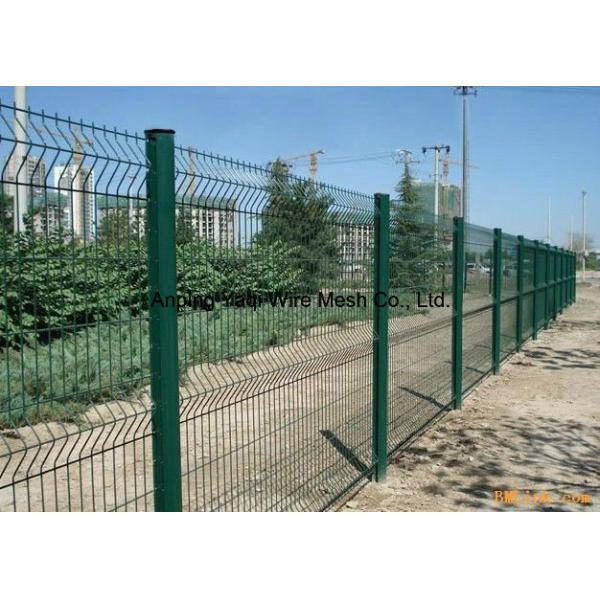

the wire mesh fence , with high security, is widely used for high way fence, resident fence , airport protect fence, prison protect fence, farm field fence , military fence etc.
Specification:
| Wire diameter: | 4.0mm-6.0mm |
| Opening: | 50mm*100mm,50*200mm,75*150mm,80*160mm,76.2mm*12.6mm |
| Width of Panel: | 1-2m |
| Length of Panel: | 2-3m |
| Post: | Square ,Round ,Peach and New type anti-thief post |
| Square post: | 50*60mm ,50mm*70mm, 60mm*60mm.80mm*80mm |
| Round post: | O/D ,48mm,50mm,60mm,70mm, 80mm, 100mm, |
| peach shaped post: | as your demanding |
----------------------------
Common specification:
Panel Height | Panel Width | Wire Dia. | Profiles | Mesh Size | Post Height | Post size |
| 630mm | 2500mm | 5mm | 2 | 200x50mm | 1100mm | 60x40x2mm |
| 1030mm | 2500mm | 5mm | 2 | 200x50mm | 1600mm | 60x40x2mm |
| 1530mm | 2500mm | 5mm | 3 | 200x50mm | 2100mm | 60x40x2mm |
| 1730mm | 2500mm | 5mm | 3 | 200x50mm | 2400mm | 60x40x2mm |
| 2030mm | 2500mm | 5mm | 4 | 200x50mm | 2600mm | 60x40x2mm |
| 2430mm | 2500mm | 5mm | 4 | 200x50mm | 3100mm | 60x40x2mm |
11.Packaging:
Welded wire mesh is packed with plastic film and then on Pallet and wooden box
any interest,don't hesitate to inform me
andie lee
