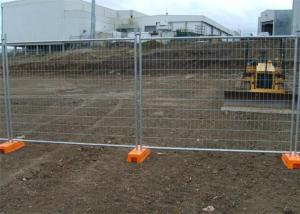

Hot Dipped Galvanized Removable Temporary Fence For Australia Customers
Product Description of Wire Mesh Fence :
Welded Wire Mesh Fence Panel is an economical version of the panel system, constructed from welded panel with longitudinal profiles that forms a rigid fence.The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic powder spray coating over galvanized materials, or galvanized only. Due to its simple structure ,easy installation and nice appearance, more and more customers regard this product as the preferred common protective fence, airport fence.
On top of the security fence is concertina razor wire which acts as a good enhanced safety barrier. By galvanization, polyester powder coating, airport fence has very good resistance to aging. It has sun-resistant, corrosion-resistant characteristics. Airport Fence is good looking in appearance. It can have various colors and it’s not only a fencing application but a perimeter decoration. Due to its high safety, good anti-climbing ability, mesh connections using special SBS tight fastener, it effectively prevent cases of human destructive disassembly. The four horizontal bend makes the mesh strength increased significantly.
Materials for Security Fence
Iron Wire Mesh Fence,Steel Wire Mesh Fence.
Security Fence Process:
Welding , Hot-dipped Galvanized,PVC coating,Spaying plastic coated.
The Wire Mesh Fence for Airport System Forms:
Welded wire mesh fence panel and the razor wire or barbed wire tape on the top.
Wire Mesh Fence length: 2m, 2.5m as standard
Mesh size: 50x100mm, 50x200mm etc. Wire Diameter: 5mm,5.5mm,6mm etc. The wire mesh fence can be
required by clients.
The type of wire mesh fence:
1.Curvy Welded Mesh Fence
2. Chain Link Fence
Our factory can design and draw according to clients.
Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading.
Product Specification of Wire Mesh Fence :
| Height | 2m, 2.4m,2.7m, 3m and 3.6m but other heights up to 6m are possible. |
| Aperture size (h x w) | 50x50-75x25mm |
| Wire / bar / pale size | 2.5-3.5mm |
| Finish: | Hot dip galvanized to BS EN ISO 1461:2009; polyester coated to a range of RAL colors. |
| Panel size
H*W (mm) | Post size
L*W*T(mm) | Post Height | Clamp
Inter/Corners |
| 2000*2400 | 60*60*2.5mm | 2700 | 7/14 |
| 2400*2515 | 60*60*2.5mm | 3100 | 9/18 |
| 2997*2515 | 80*80*2.5mm | 3800 | 11/22 |
| 3607*2515 | 100*60*3mm | 4500 | 13/26 |
| 4204*2515 | 100*100*4mm | 5200 | 15/30 |
| 4496*2515 | 100*100*5mm | 5500 | 16/32 |
| 5207*2515 | 120*120*5mm | 6200 | 18/36 |
Product Characteristic of Wire Mesh Fence :
Airport fences Production Line: Using high quality Iron Rod as raw material, the welded panel,after galvanization, Powders Primer,and Powders top coating;it can resist the corrosive and ultraviolet radiation very strongly.
Fence Post Production Line: material---cut short machine---sandblasting machine---galvanized bath---Parkerizing tank---power coated machine.
Packaging Details:Packing with pallets , outside wrap with plastic film ,at last in container , or as your special requirement
Product Application of Wire Mesh Fence:
1. No matter FOB or CIF the price term is we woula try our best to find a lowest freight cost for
customers' reference.
2. the third-party inspection always gets real and true data from us and we will send production
photos to customers if there is no inspection.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation,maintenance and repair instructions with full information.
5. 3-8 years warranty depends to different products.
6. Accept Changing or Refunding if the products cannot be installed rightly.
