Brand Name : YQ
Model Number : YQ-Z 114
Certification : ISO,SGS.TUV
Place of Origin : HengShui.China
MOQ : 50 PCS
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 50000 PCS /WEEK
Delivery Time : 5-8 WORKING DAYS
Packaging Details : PALLET
Material : Iron Sheet
Thickness : 0.5mm-3.0mm
Hole Shape : Round,Retangle,Hexagonal
Panel Size : 1M*2M
HS Code : 73191400
Hot-galvanize Technique : Line Annealing
Stainless steel 5mm *5mm*1mm Thickness sheet/Galvanized 0.8MM *10mm*10mm Center Hole Perforated Sheet
Perforated Metal Mesh Product Specification
Process all kinds of galvanized coil perforated metal mesh
The hole size and mesh diameter can make accordng to constomer's requirement.
In the photo, the mesh dia is 5mm.
The edge distance is 2mm
The thickness of perforated metal is 0.5mm-1mm
The edge can according to constomers requirement
Can make all kinds of width and mesh shape and mesh dia, wecome to all of constomers place order.
Can process the max size of perforated is: Width 2mXlongth 6mX thinckness of thickness 60mm.
The perforated dia can received mix 0.2mm., the perforated rate can <=+_0.015mm, Man-machine dialogue, the computer automatically programmed, and CAD design and so on.
Able to interpret a variety of complex workpiece graphic pattern, and have very high rate and small error, and good quality
Materials: Hot-rolled and cold-rolled carbon steel sheets, galvanized sheets, stainless steel sheets, aluminum, aluminum-plastic, copper, nickel, titanium, PVC and other sheet materials.
Opening: Round, oval, square, rectangular, rhombus, hexagon, scale shape and composition of different shapes, also other special shape.
Process: Stamping, leveling, cutting, bending, reeling, welding, shaping and surface treatment.
Application: Mine, machinery, food, stationery and sports goods, kitchen and toilet supplies, muffler, decoration, cons.
Perforated Metal Mesh Specification
Hole | Hole | Pitch | Number of Hole | Open Area |
In. No. | In MM | In MM | Per Sq.Inch | In % |
3.00 | 0.50 | 1.09 | 627.02 | 19.09 |
3.25 | 0.55 | 1.25 | 476.00 | 17.50 |
3.50 | 0.60 | 1.25 | 471.00 | 20.90 |
3.75 | 0.70 | 1.35 | 408.00 | 24.39 |
4.00 | 0.80 | 1.39 | 385.57 | 30.05 |
4.50 | 0.90 | 1.39 | 385.57 | 38.04 |
5.00 | 1.00 | 1.67 | 267.12 | 32.53 |
5.25 | 1.10 | 1.67 | 267.12 | 39.36 |
5.50 | 1.20 | 2.00 | 186.24 | 32.66 |
5.75 | 1.30 | 2.25 | 147.15 | 30.29 |
6.00 | 1.40 | 2.50 | 119.19 | 28.45 |
6.25 | 1.50 | 3.00 | 82.77 | 22.68 |
6.50 | 1.60 | 3.17 | 74.13 | 23.11 |
6.75 | 1.70 | 3.25 | 70.53 | 24.82 |
7.00 | 1.80 | 3.50 | 60.81 | 24.00 |
7.25 | 1.90 | 3.50 | 60.81 | 26.74 |
7.50 | 2.00 | 3.75 | 52.98 | 25.81 |
7.75 | 2.10 | 3.75 | 52.98 | 28.45 |
8.00 | 2.20 | 4.33 | 39.73 | 23.42 |
8.25 | 2.30 | 3.50 | 60.81 | 39.18 |
8.50 | 2.40 | 3.50 | 60.81 | 42.66 |
8.75 | 2.50 | 5.00 | 29.80 | 22.68 |
9.00 | 3.00 | 5.00 | 29.80 | 32.66 |
10.00 | 3.20 | 6.50 | 17.63 | 21.99 |
10.25 | 3.50 | 6.50 | 17.63 | 26.31 |
10.75 | 4.00 | 6.50 | 17.63 | 34.36 |
11.25 | 4.50 | 6.50 | 17.63 | 43.48 |
11.75 | 5.00 | 8.00 | 11.64 | 35.44 |
12.50 | 6.00 | 8.00 | 11.64 | 51.03 |
12.50 | 6.00 | 9.00 | 9.20 | 40.32 |
13.75 | 7.00 | 11.25 | 5.89 | 35.13 |
15.00 | 8.00 | 11.25 | 5.86 | 54.88 |
15.75 | 10.00 | 15.00 | 3.31 | 40.32 |
12.00 | 18.00 | 2.30 | 40.32 | |
OTHERS | ||||
2.00 | 4.91 | 30.90 | 15.05 | |
2.50 | 5.20 | 27.55 | 20.97 | |
3.00 | 4.75 | 33.02 | 36.19 | |
4.00 | 6.00 | 20.69 | 40.32 | |
5.00 | 7.80 | 12.24 | 37.28 | |
6.00 | 7.80 | 12.24 | 53.68 | |
8.00 | 10.50 | 6.76 | 52.67 |
![]() |

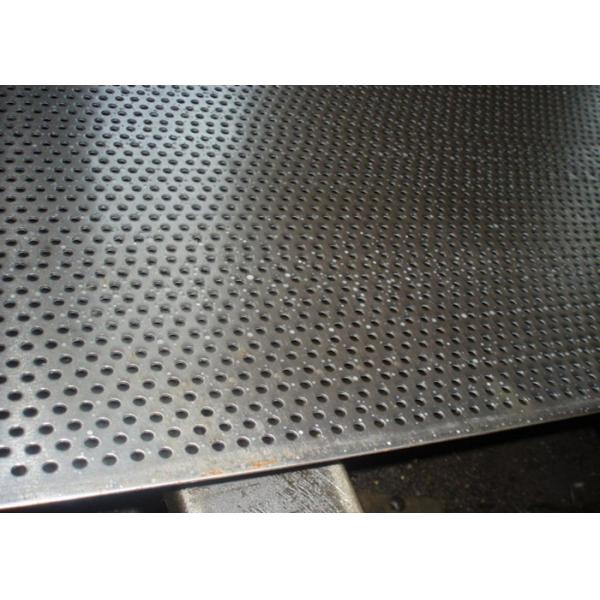

5mm*5mm*1mm Thickness Galvanized Metal Perforated Sheet 0.8MM*10mm*10mm Center Hole Images |
