3.0MM Fixed Knot Glassland Fencing With Hot Dip Galvanized Wire 30 M Roll
Product Description:

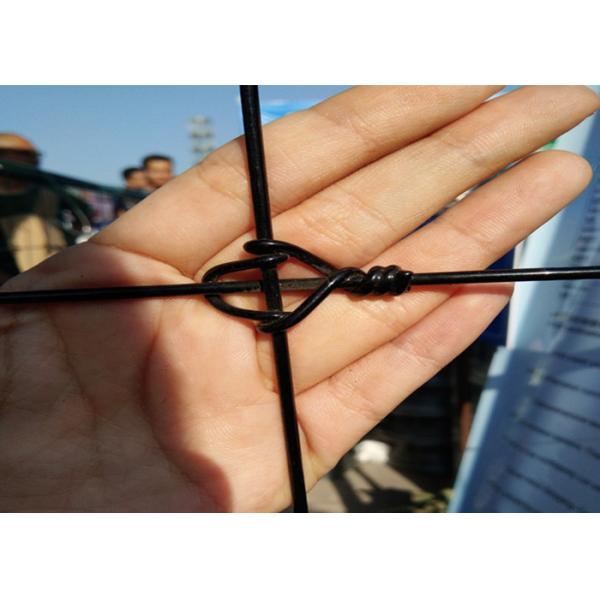

Fixed knot woven fence is also known as solid lock fence,cross lock fence, which is mainly used as field fence or grassland fence and farm fencing to protect cattle, deer, horse, cow, sheep, goats and hogs and so on. This type of fixed knot field fence has stronge construction, to protect your investment with most reliable confinement. Fixed knot fence is most commonly found in deer and wildlife fences, but it is being used in more common farm and field fence styles,too.
Material:
high tensile strength mild steel wire, low carbon steel wire, high carbon steel wire.
Horizontal wires:
2.50mm or customized.
Tensile strength:
1200-1400 N/mm2.
Vertical wires:
2.50mm or customized.
Tensile strength:
820-970 N/mm2.
Node wires:
2.24mm or customized.
Tensile strength:
400-550 N/mm2.
Heavy zinc coating:
230-350g/m2.
Common zinc coating:
40-60g/m2.
Electro galvanized zinc coating:
8-15g/m2.
Specification:
| Num | Specification mesh | Gross Weight
(kg) | Edge diameter (mm) | Inner
diameter
(mm) | Volume diameter (mm) |
| | Type | Specification | | | | |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 270 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
Characteristics:
1.Field fence we offer have innovative and firm structure, flat surface, uniform opening and good integration.
2.This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure.
3.It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.
Application:
It is widely used as nimal fence, construction site fences, wildlife park, grassland, pasture and other places of grazing in captivity, especially applied in the pasture fence project, for rotational grazing pastures, protection, can play an important role, can also be used for rare flowers, growing forest park isolation protection.
Picture Show:
