Electro Galvanized Hinge Joint Woven Field Fence / Grassland Fence in 2.0mm Diameter
Product Description of Field Fence / Grassland Fence
Field fence is also known as Prairie fence, Cattle fence, Grassland Fence, Horse Fence, Sheep Fence, Deer Fence, Woven Wire, Livestock Fence, Hinge Joint Field Fence which is made of hot-dipped galvanized steel wire, offer high strength and tensile strength, provide safety fencing against fierce striking of cattle, horse or goats. Knotted Wire Mesh Fences make an ideal fencing material for grasslands husbandry.
Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)
Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
Class C: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
For weavint type: there are two types. Please note the picture.
Product Specification of Field Fence / Grassland Fence
| No. | Specification of Field Fence | Weight | Bottom | Dia. |
| Type | Specification | kg | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 22 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 22 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |
| Remark: Height of fence is from 0.8m up to 2.0m, length is 50m 100m or 200m per roll. Surface treatment can be made with electro galvanized or hot-dip galvanized, hot-dip galvanized cheap horse fence panels is much more durable. |
Product Features of Field Fence / Grassland Fence
Grassland fences we offer have innovative and firm structure, flat surface, uniform opening and good integration.
Grassland fences offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property.
Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments
Product Application
Field fence is made of mild steel wire and high tensile strength wire , with hinge joint , fixed knot and ring lock structure , it is suitable for sheep and cattle , horses , forestry , highways, railways.
Product Tags:
|
|

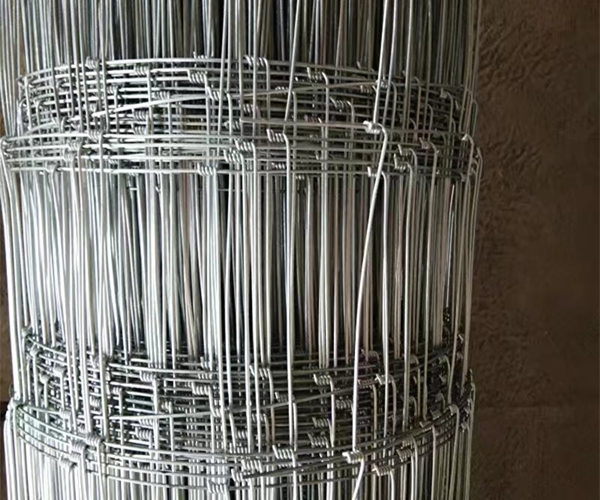

Electro Galvanized Hinge Joint Woven Field Fence For Grassland In 2.0mm Diameter Images
|
