BWG 6 Square Wire Panels Low Carton Steel Silver For Construction

Anping Yaqi Wire Mesh Co.,Ltd
Contact Now

BWG 6 Square Wire Panels Low Carton Steel Silver For Construction

Brand Name : YQ

Model Number : YQ-D18

Certification : ISO 9001

Place of Origin : Hebei,China.

MOQ : 100 square meters.

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500000 pieces per month

Delivery Time : 5-15 days

Packaging Details : Plastic bags and then on pallet.

Material : low carton steel.

Usage : construction

Diameter : BWG14-BWG4

Hole Size : square, oblong

Factory : yes

Sample : free

Aperture : 1/4"-5"

Color : silver,black.

Contact Now

BWG 6 Welded Wire Mesh Panel Reinforcing MeshPanel with 6 x 6 cm Aperture


Product Introduction:

Welded Wire Mesh Panel (Reinforcing welded wire mesh )is made up of reinforcing wires welded at the intersection spots, which does not disturb the structure of the metal. This type of mesh is a square grid of uniformly placed wires, welded at all intersections, and meeting the requirements of ASTM A185 and A497 or other standards.

Specification:

Material Low carbon steel or stainless steel. galvanized wire.
Surface Treatment PVC coated,Hot dip galvanized ,Electro galvanized.
Common Aperture 5x5cm/10x10cm/15x15cm/10x20cm.
Common Diameter BWG 10-BWG 4.
Process welded after galvanized and galvanized after welded, pvc coated.
Package Plastic bags and then on pallet.

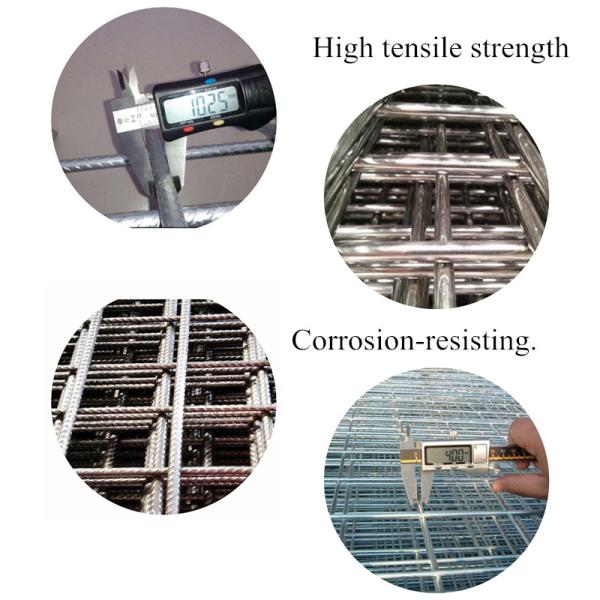

Advantage
1. High tensile strength.
2..Corrosion-resisting.
3. Oxidation-resisting.
4. Durable.
5. Sunshine resistance and weather resistance
Usage It is widely used in building fields instead of brick wall, used as various main walls, non-main walls, the floor, and balcony and so on. I


Specification:

Specification List of Welded Mesh Panel
Opening Wire diameter
Inch mm BWG mm
1" × 1" 25mmx25mm 14# - 11# 2.0mm - 3mm
2" × 1" 50mmx25mm 14# - 8# 2.0mm - 4mm
2" × 2" 50mmx50mm 14# - 8# 2.0mm - 4mm
3" × 2" 75mmx50mm 14# - 6# 2.0mm - 5mm
3" × 3" 75mmx75mm 14# - 6# 2.0mm - 5mm
4" × 2" 100mmx50mm 14# - 4# 2.0mm - 6mm
4" × 4" 100mmx100mm 14# - 4# 2.0mm - 6mm
5" × 5" 125mmx125mm 14# - 4# 2.0mm - 6mm
6" × 6" 150mmx150mm 14# - 4# 2.0mm - 6mm
Note: Special specifications can be customized.

Detail:


BWG 6 Square Wire Panels Low Carton Steel Silver For Construction
